Handles
The EauZone handles are subtly styled but have their own clear character. They are made of brass and available in all the EauZone finishes*.
* Illustrious handle not available in Matt Black.

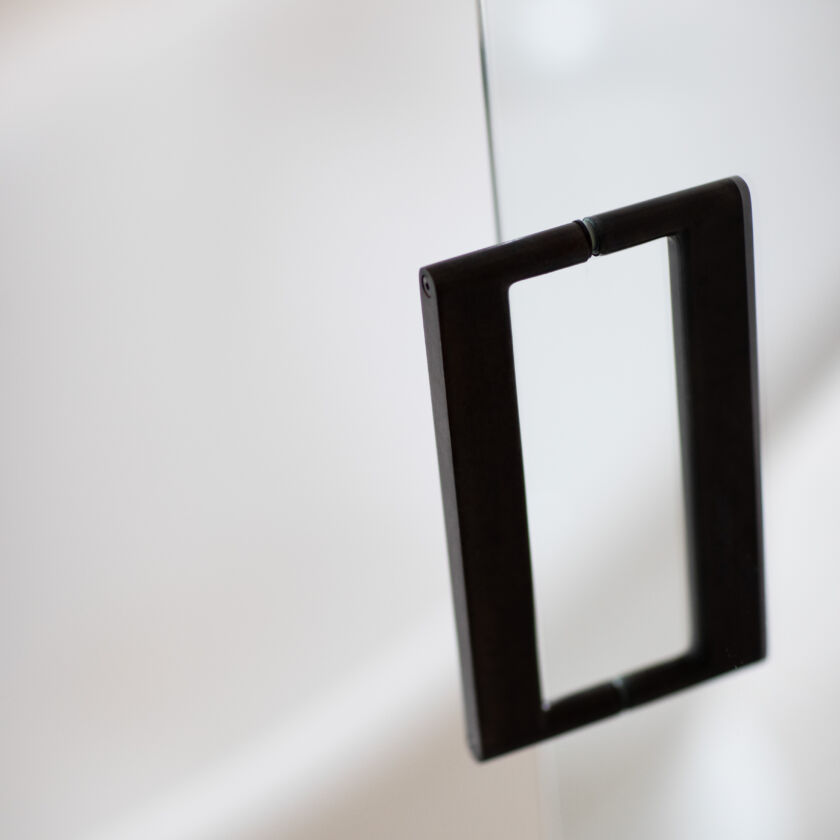

Linear Handle

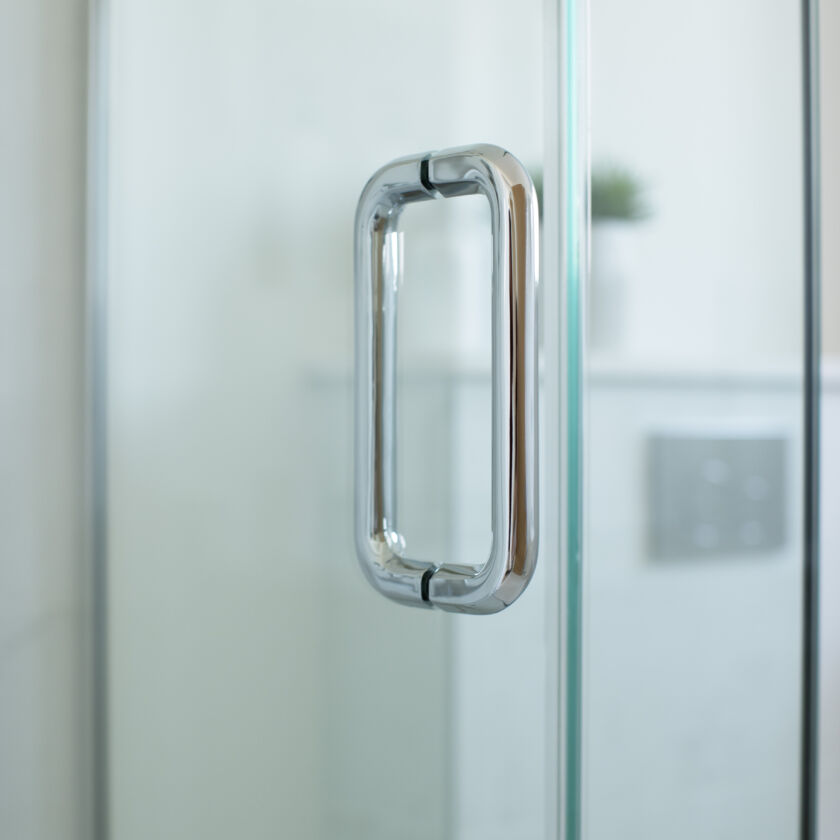

Illustrious Handle

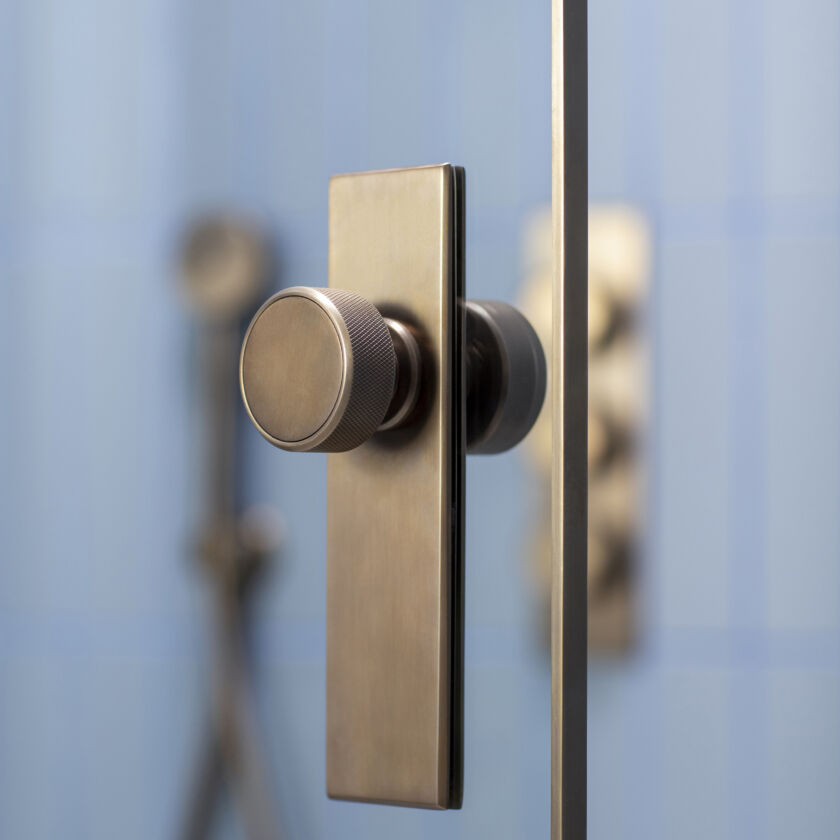

Engineer Handle

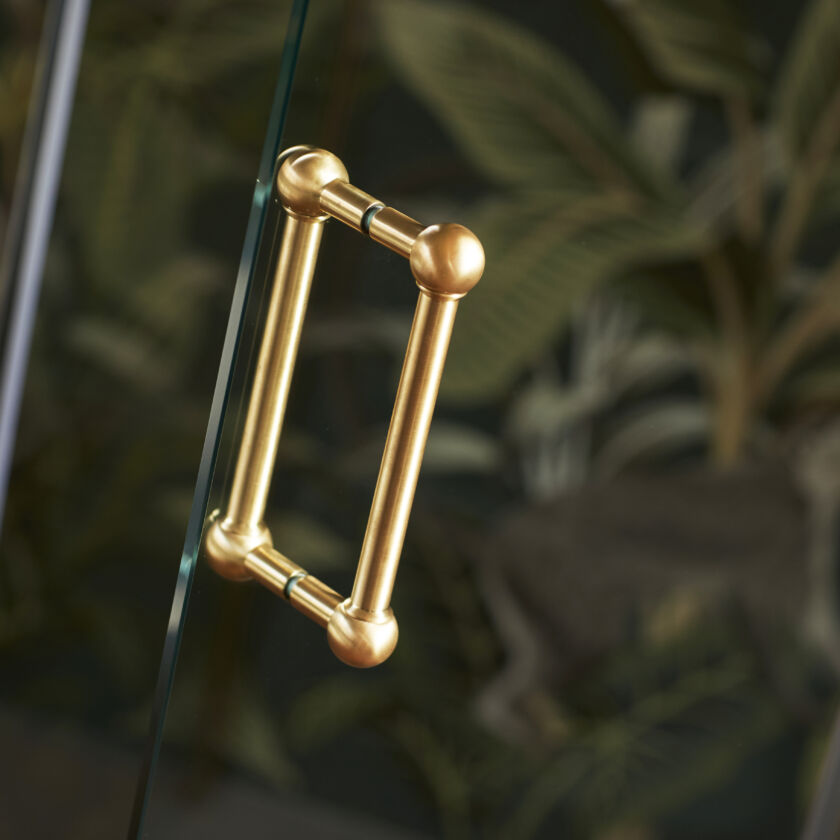

Traditional Handle

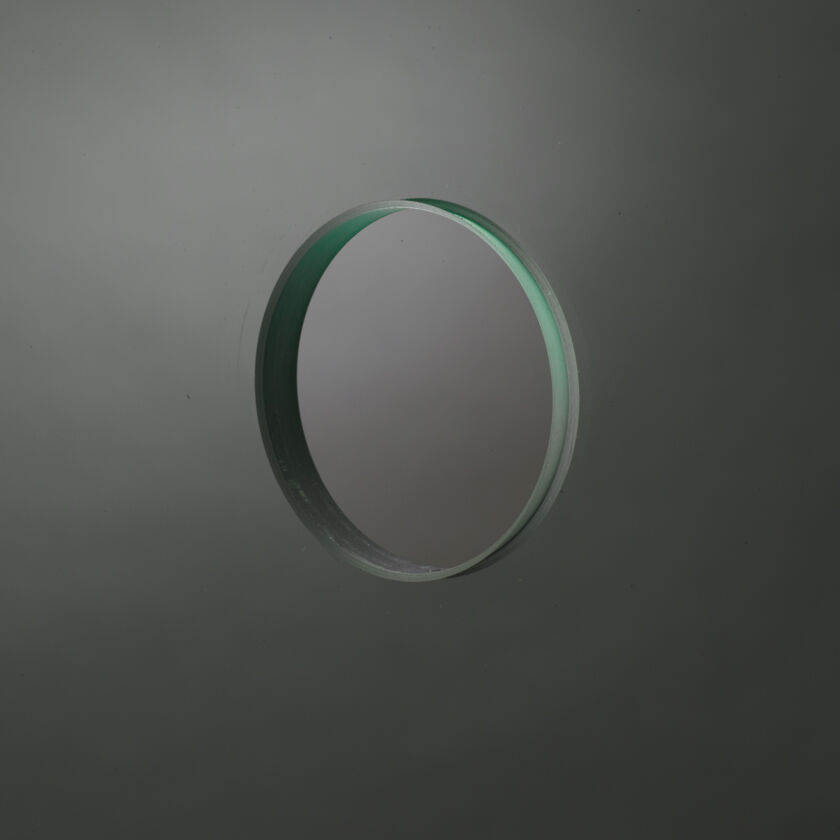

Circular Cut-Out Handle
Bespoke glass is required for a circular cut-out handle.
Towel Rails
EauZone Towel Rails are made of brass and available in all the EauZone finishes. They come in 450mm and 600mm sizes and can fit to fixed panels or doors. On doors they are generally mounted horizontally with an internal pull handle, but could equally position vertically as a longer handle.

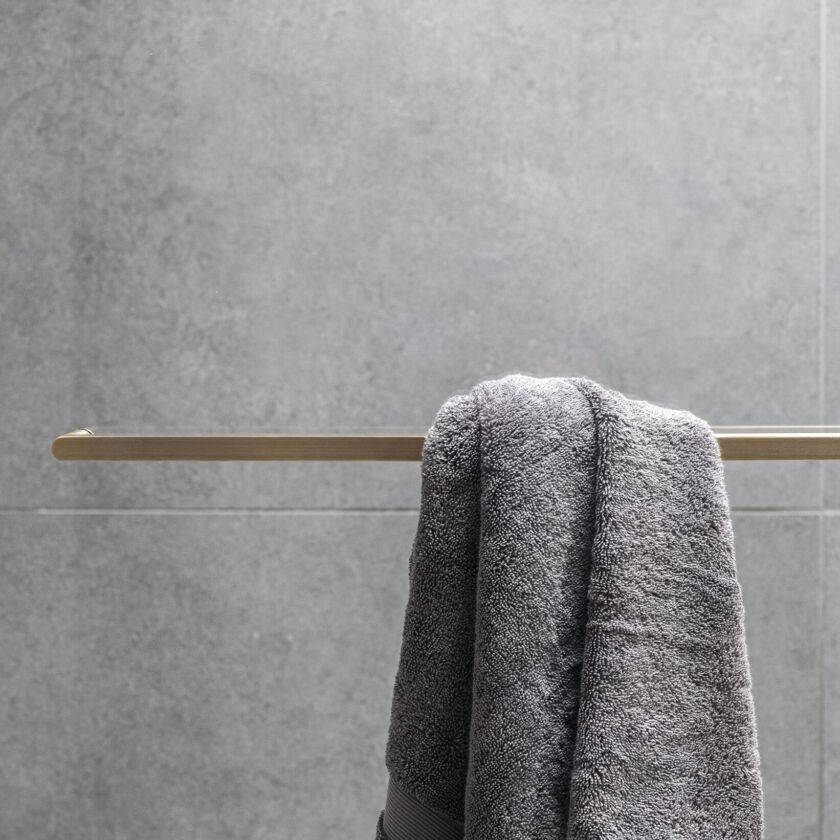

Linear Towel Rail

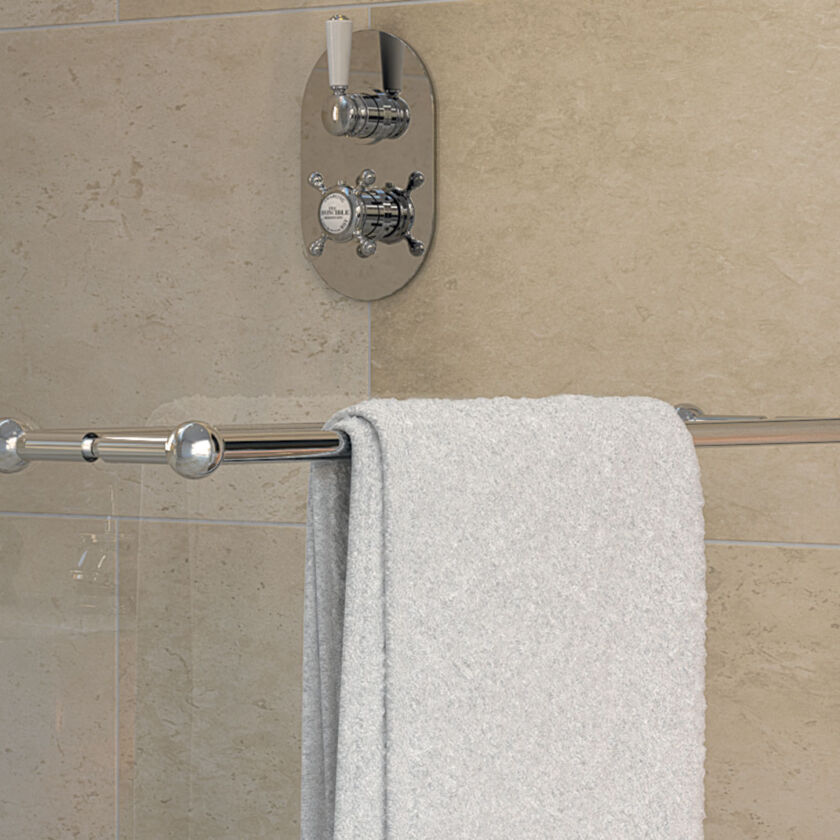

Traditional Towel Rail
Wall Frames

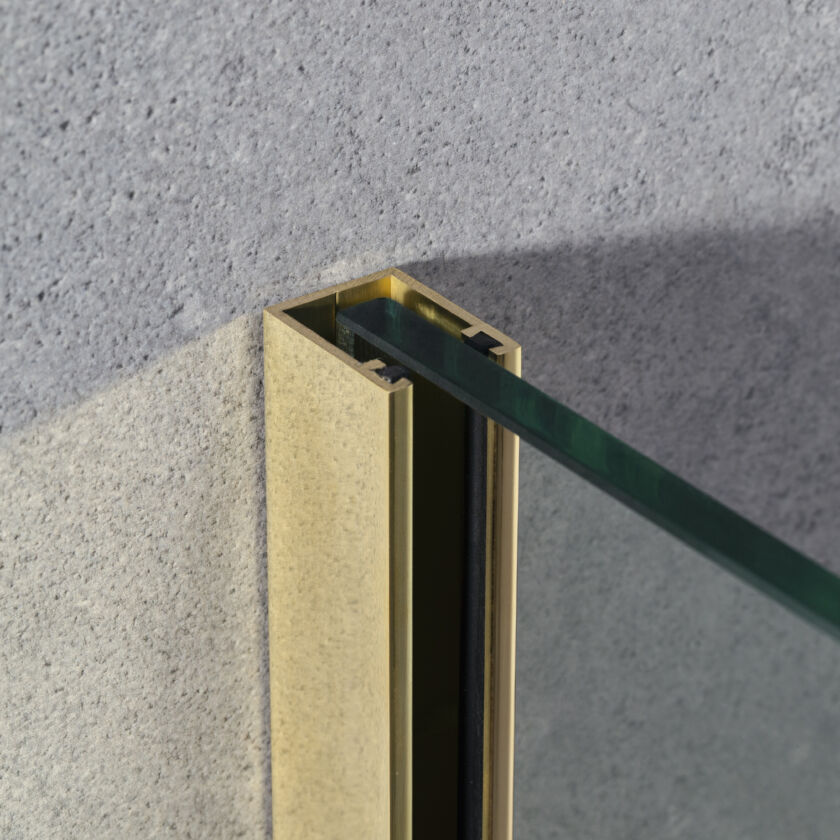

Standard Wall Frame
MATERIAL: Aluminium for Silver/Chrome and Matt Black finishes; Brass for all other special finishes.
DESCRIPTION: Allows for adjustment in situations with out-of-plumb wall.
DIMENSION: 28mm
Minimal Wall Frame
MATERIAL: Aluminium for Silver/Chrome and Matt Black finishes; Brass for all other special finishes.
DESCRIPTION: Minimal wall-mounted profile for an almost frameless look. There is very little adjustment so Measure and Installation is required.
DIMENSION: 11mm
Completely Frameless
For a Completely Frameless look, the area is expertly measured to bring the glass edge as close as possible to the wall. The gap is then neatly siliconed by our expert installers to ensure water retention. There is no adjustment in Completely Frameless products, so Measure and Installation by Matki Installations is required.

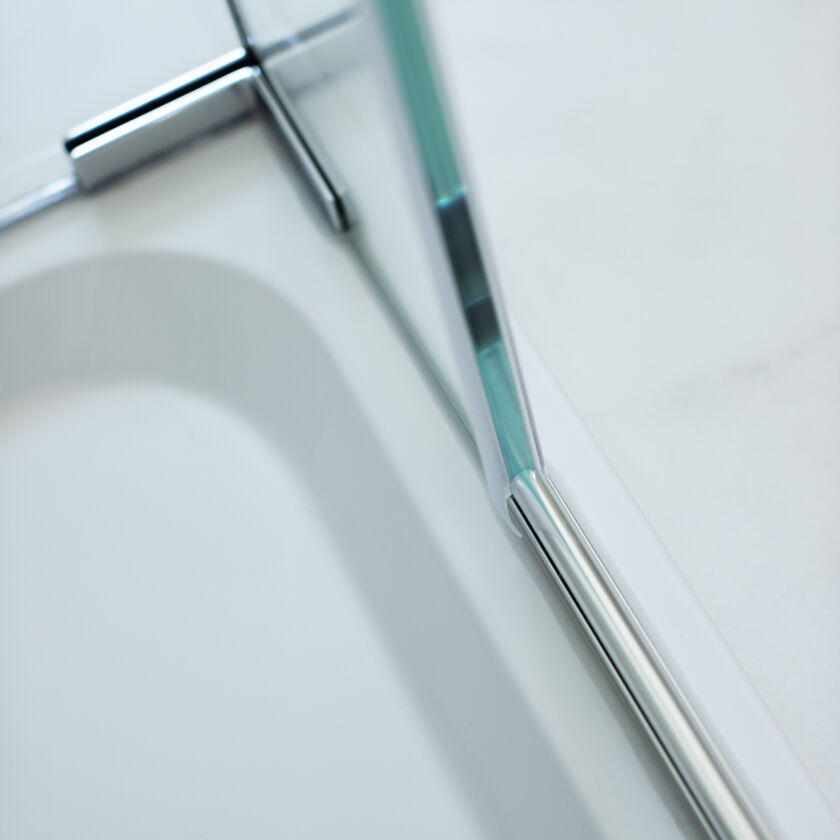

Threshold Frames
We always recommend a threshold frame as its important for keeping the water in the shower area.
A completely frameless threshold is also an option, but it is advisable to give careful thought to water drainage and consider tanking the surrounding area as a precuaution. If later on you change your mind and would like a threshold frame, it is easy to retrofit.
Our standard threshold frames come in aluminium material for silver/chrome and matt black finishes then in brass for all other finishes.
We design our EauZone shower doors to be as frameless as possible where they meet the floor or shower tray. This makes them look better and easier to clean. The threshold is easy to replace if you ever need to.

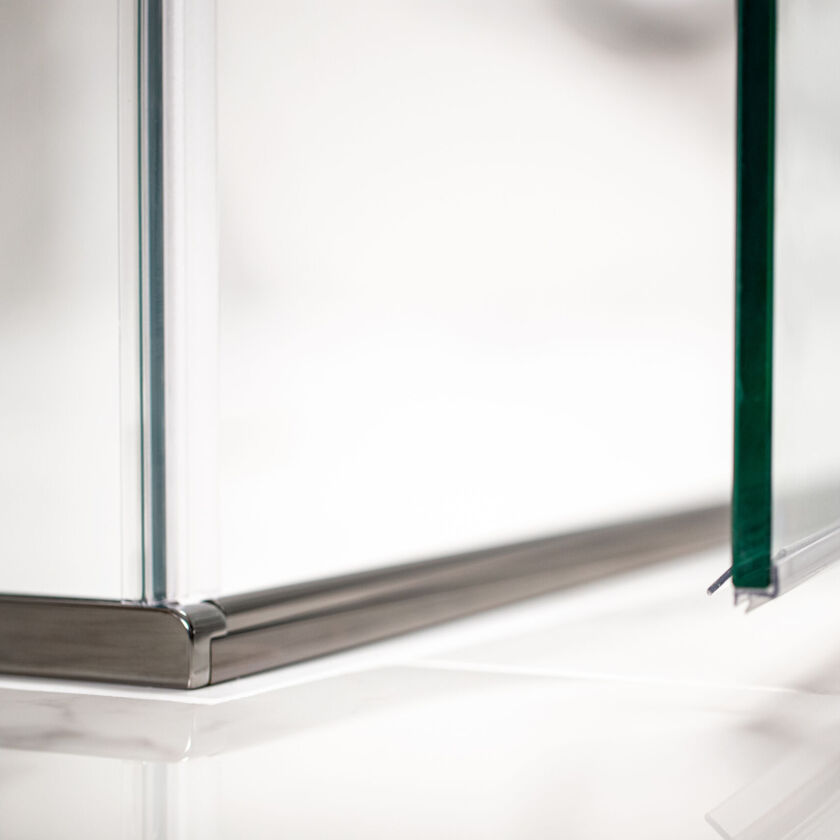

Threshold to Side Panel
Threshold to Inline Panel
Hinges
The hinge is the most important mechanism in a shower door. The EauZone hinge was designed by Matki to:
- Open and close reliably for decades
- Hold really heavy glass without ever dropping
- Allow the door seal to pass through it continuously – making the product fit for use with steam and preventing any leaks even when cleaning
- Push the door firmly onto the closure – so even when its knocked during showering the hinge will pull the door closed again
- Look fantastic in a wide range of finishes
The EauZone hinge was awarded Design Patent 2470778. Versions are available for mounting on walls or glass panels in both outward- and inward-opening setups.

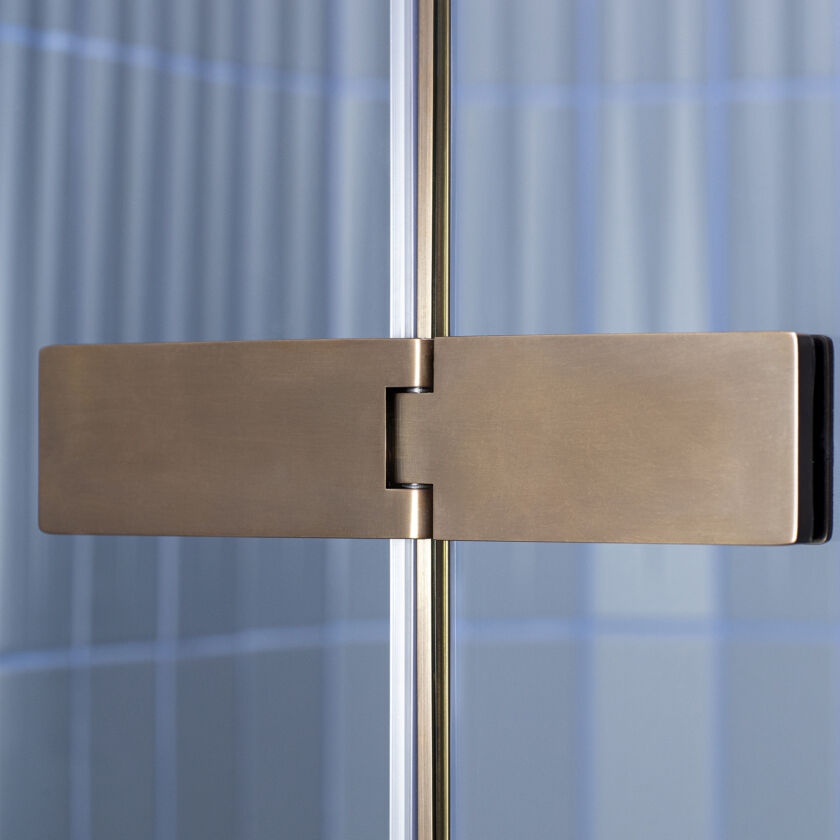

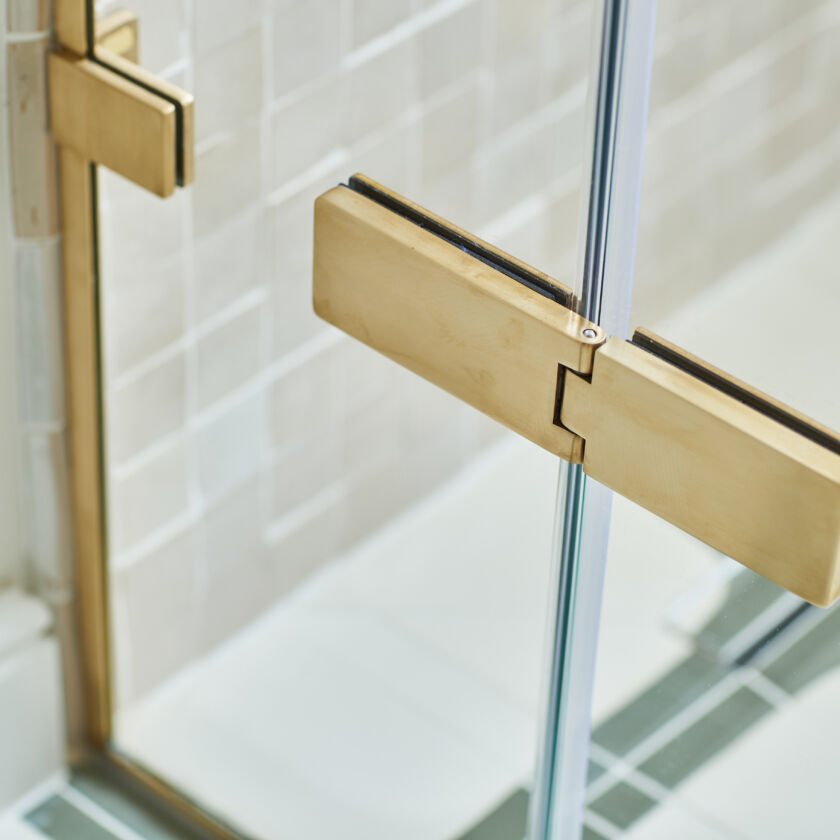

Panel-Mounted Hinge
Outward or inward opening
Width: 250mm. Height: 58mm.
Wall-Mounted Hinge
Outward or inward opening
Width: 137mm. Height: 58mm.
Brackets
Every EauZone bracket is designed by Matki and handmade from brass in our factory. The brackets perform an important role and become more aesthetically important in a frameless looking product like EauZone.
The L-Bracket is our wall bracket of choice. It looks stunning, with no visible fixings, and keeps a clean, undisturbed line where the product meets the walls. Often it is used in conjunction with our Foot Bracket, which locates in the bottom corner of the product.
In some cases – such as angled ceilings, narrow nib walls or when the shower door goes full height to the ceiling – alternative brackets are needed. We have different types of Wall Brackets depending on the choice of Wall Frames.
L-Bracket
The signature L-Bracket is compatible with all frame types – standard, minimal and completely frameless.
Width on glass side: 110mm. Width on wall side: 122mm. Height 24mm.
Corner Bracket
Located at the top corner to join a fixed panel and side panel, the Corner Bracket is specially proportioned to work in harmony with the style of the L-Bracket.
Width (both ways): 83mm. Height: 21mm.

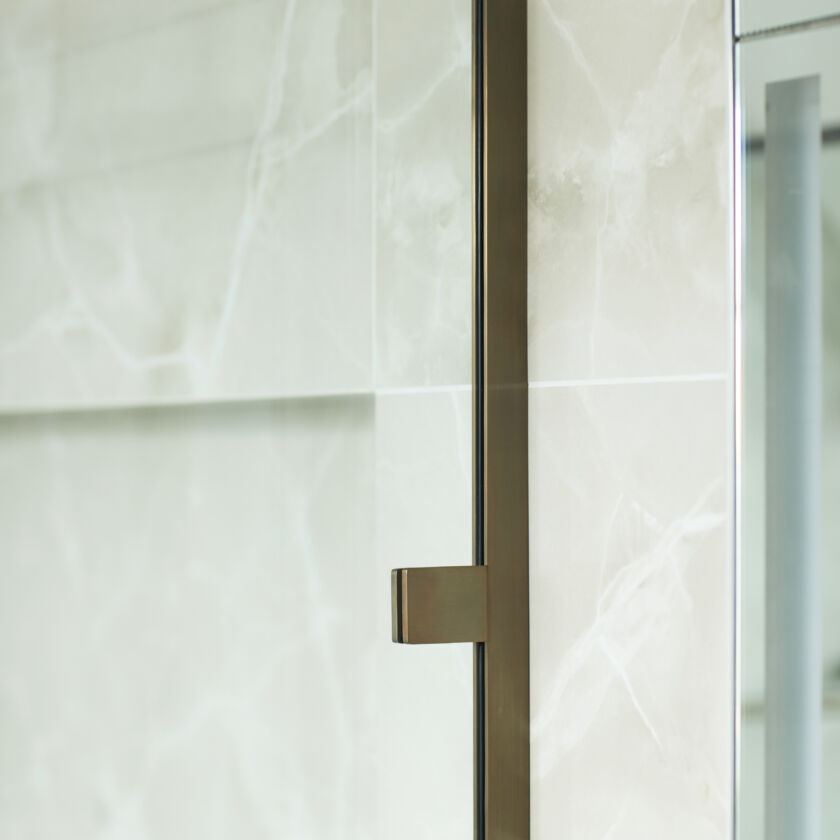

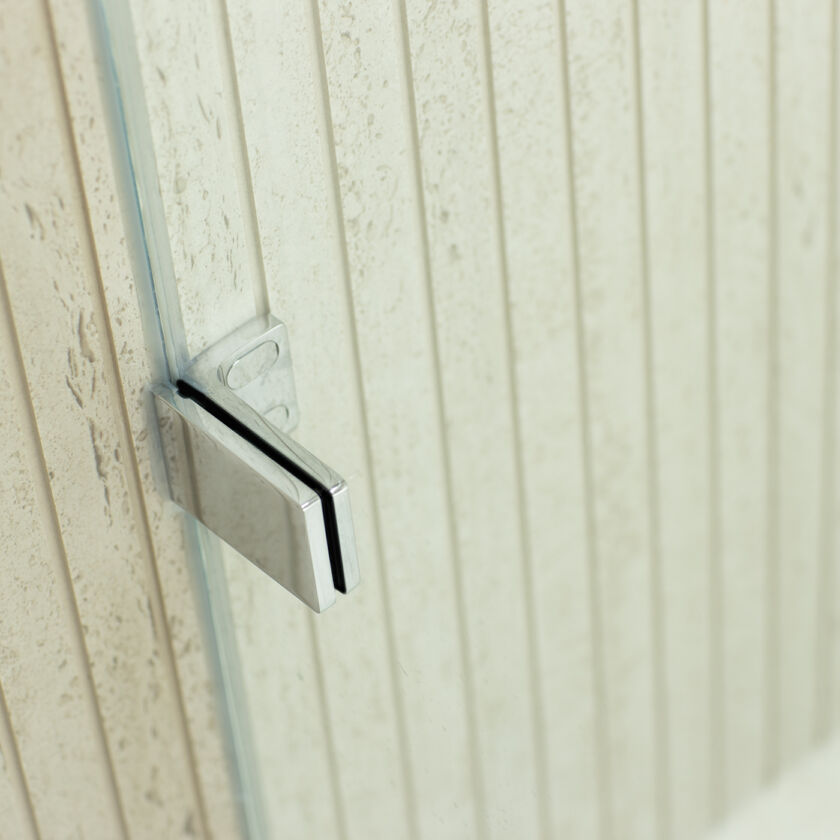

Wall Bracket for Standard Frames
This Wall Bracket is used with the 28mm standard frame. It fits really neatly into the standard frame and is especially useful if there isn’t space on the wall for the arm of an L-Bracket.
Width 54mm. Height 44mm. Footprint on wall is fully within the frame.
Bespoke glass required.
Wall Bracket with Minimal Frames
This Wall Bracket sits neatly over the 11mm wide EauZone minimal frames.
Width on glass side (from wall): 67.5mm. Width on wall Side: 52mm. Height: 44mm.
Wall Bracket with Frameless Glass
The same Wall Bracket is used for minimal frames and frameless glass.

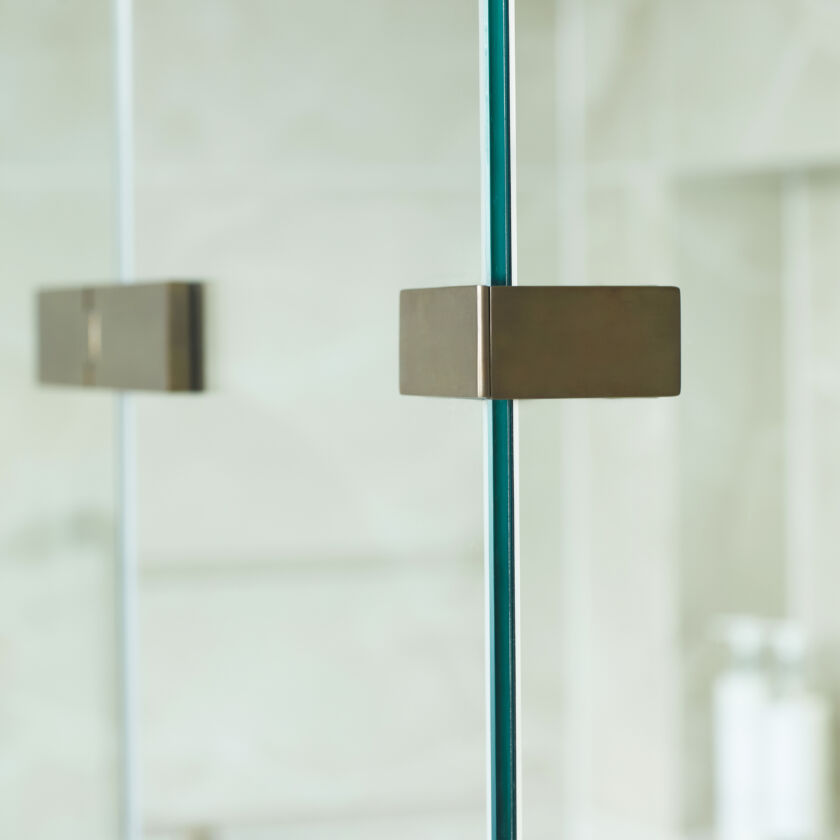

Corner Wrap Bracket
The Corner Wrap Bracket is used to secure the corner join of two fixed panels. It gives a really strong join in situations where the standard corner bracket cannot be used.
Width (both ways): 87mm. Height: 44mm.
Braces

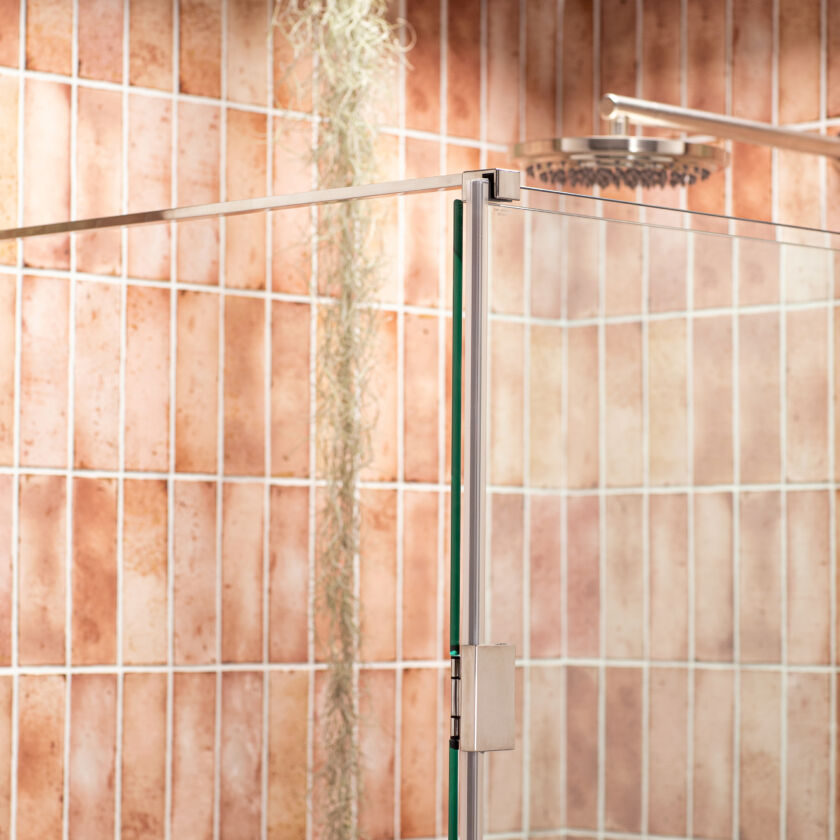

Wall Brace
The Wall Brace gives extra stability to larger glass panels. The wall and glass fittings are both made from brass. The bar itself is aluminium for silver/chrome and matt black finishes, but brass for all other finishes.
The standard version has an adjustment range 863 – 905mm. The long version 963 – 1005mm.

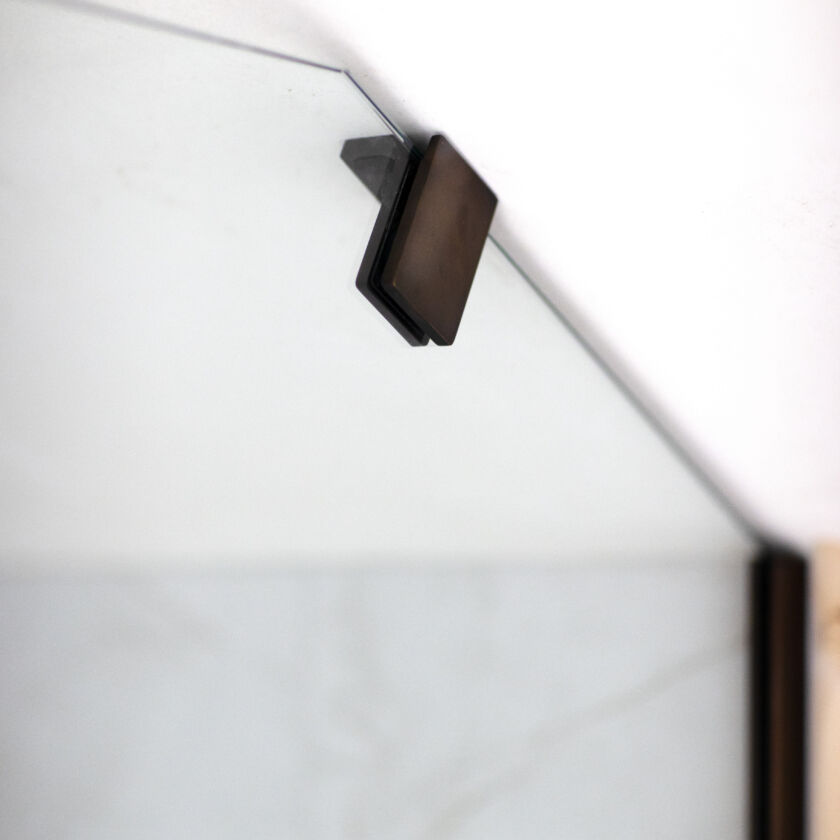

Bespoke Brace
To brace between over-sized panels or to the ceiling, if required, we use the Bespoke Brace. This is hand-fabricated exactly to suit the space and purpose required. It is always made from brass and is available in all finishes.

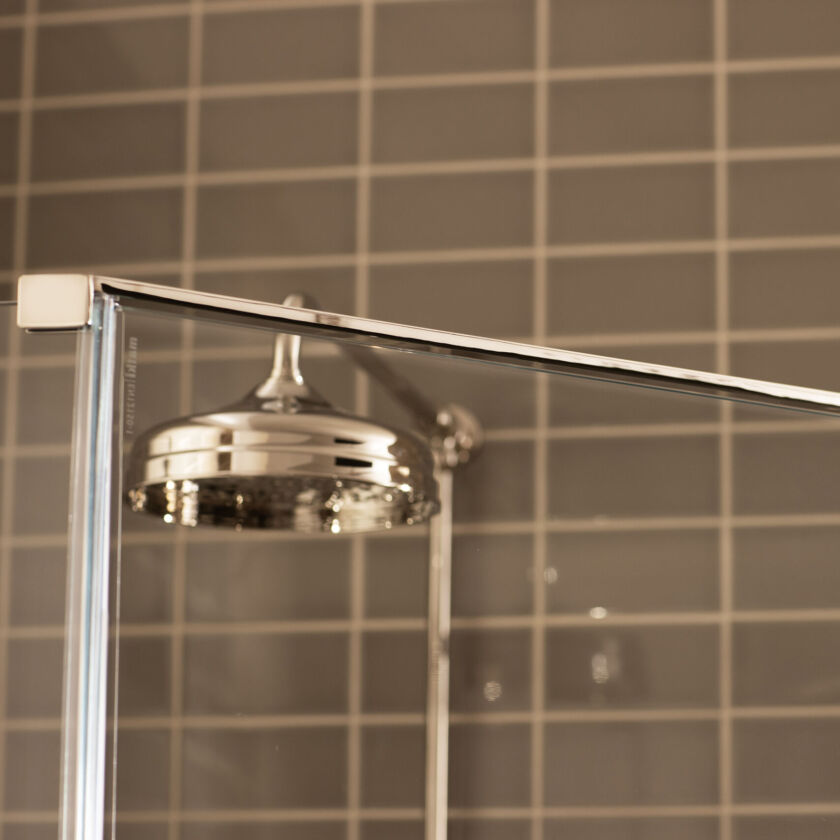

Shower Brace
The Shower Brace holds the glass firmly whilst also supplying water to the shower head. It is made of brass and available in a broad range of finishes.
Compatible with low pressure. First fix part included.

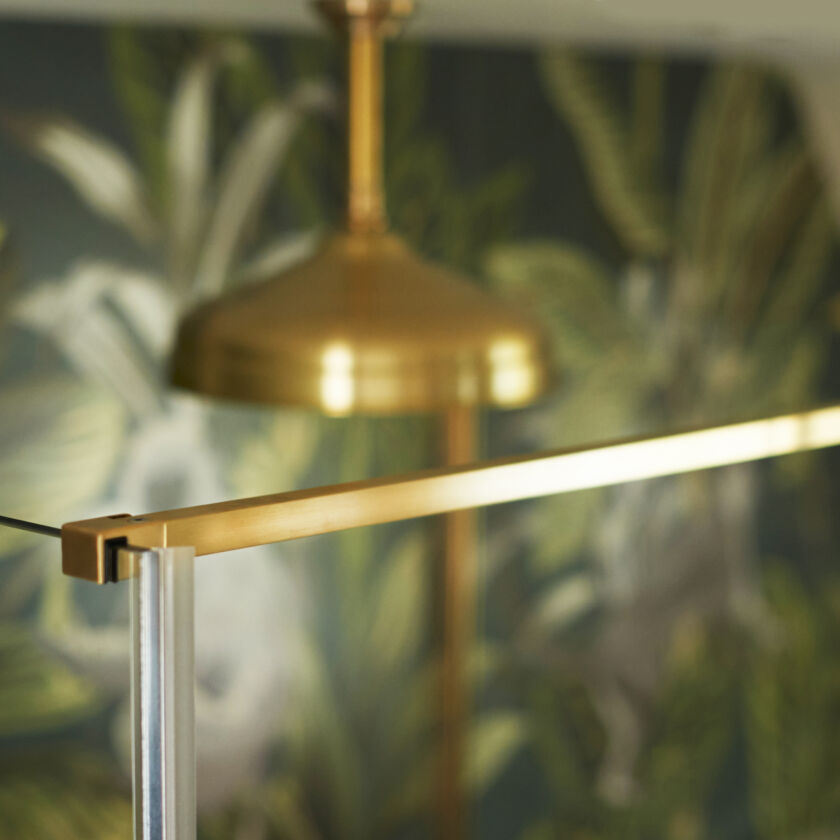

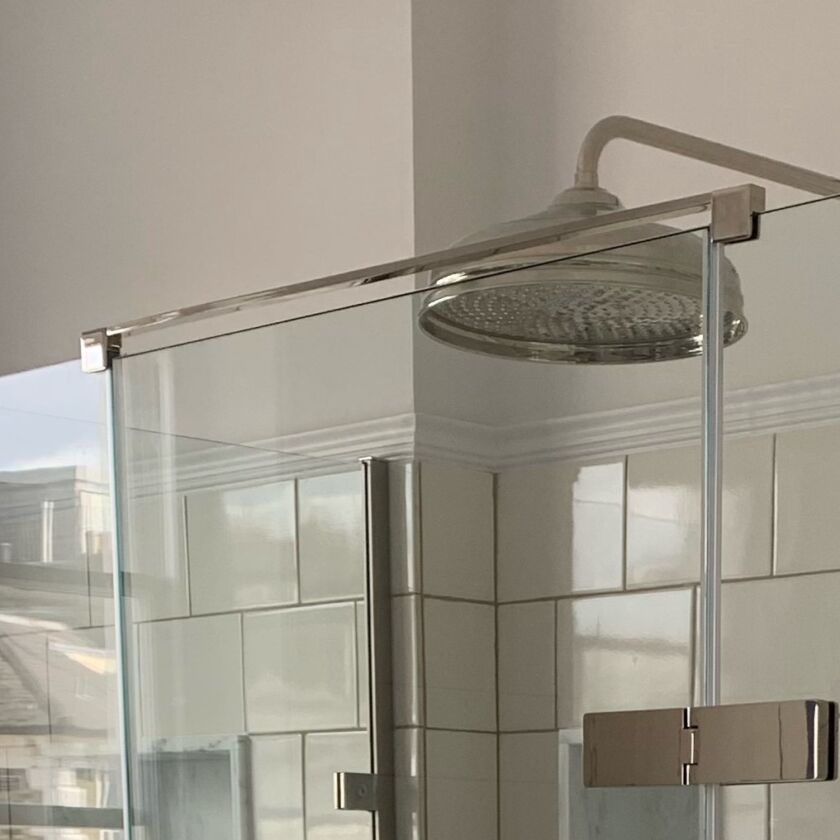

Over Door Brace
We use the over door brace for three-sided hinged doors and other cases requiring extra support. It is available in all finishes and sits neatly above the entrance.
Quintesse Brace
The EauZone Quintesse Brace is made of brass and available in all finishes. It sits sleekly above the door and is available in bespoke widths.
