Every EauZone bracket is designed by Matki and handmade from brass in our factory. The brackets perform an important role and become more aesthetically important in a frameless looking product like EauZone.
The L-Bracket is our wall bracket of choice. It looks stunning, with no visible fixings, and keeps a clean, undisturbed line where the product meets the walls. Often it is used in conjunction with our Foot Bracket, which locates in the bottom corner of the product.
In some cases – such as angled ceilings, narrow nib walls or when the shower door goes full height to the ceiling – alternative brackets are needed. We have different types of Wall Brackets depending on the choice of Wall Frames.

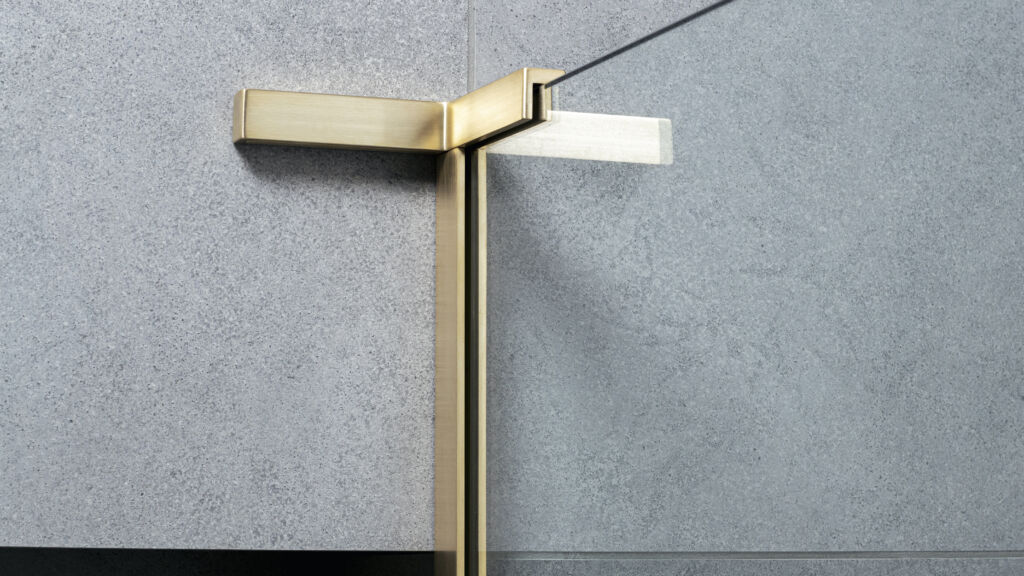

L-Bracket
The signature L-Bracket is compatible with all frame types – standard, minimal and completely frameless.
Width on glass side: 110mm. Width on wall side: 122mm. Height 24mm.
Corner Bracket
Located at the top corner to join a fixed panel and side panel, the Corner Bracket is specially proportioned to work in harmony with the style of the L-Bracket.
Width (both ways): 83mm. Height: 21mm.

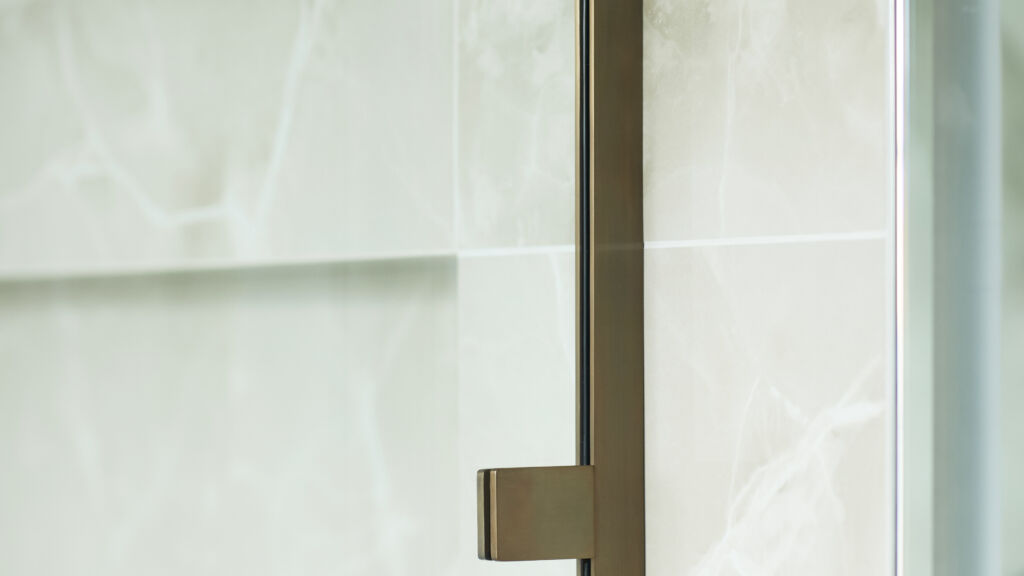

Wall Bracket for Standard Frames
This Wall Bracket is used with the 28mm standard frame. It fits really neatly into the standard frame and is especially useful if there isn’t space on the wall for the arm of an L-Bracket.
Width 54mm. Height 44mm. Footprint on wall is fully within the frame.
Bespoke glass required.
Wall Bracket with Minimal Frames
This Wall Bracket sits neatly over the 11mm wide EauZone minimal frames.
Width on glass side (from wall): 67.5mm. Width on wall Side: 52mm. Height: 44mm.
Wall Bracket with Frameless Glass
The same Wall Bracket is used for minimal frames and frameless glass.

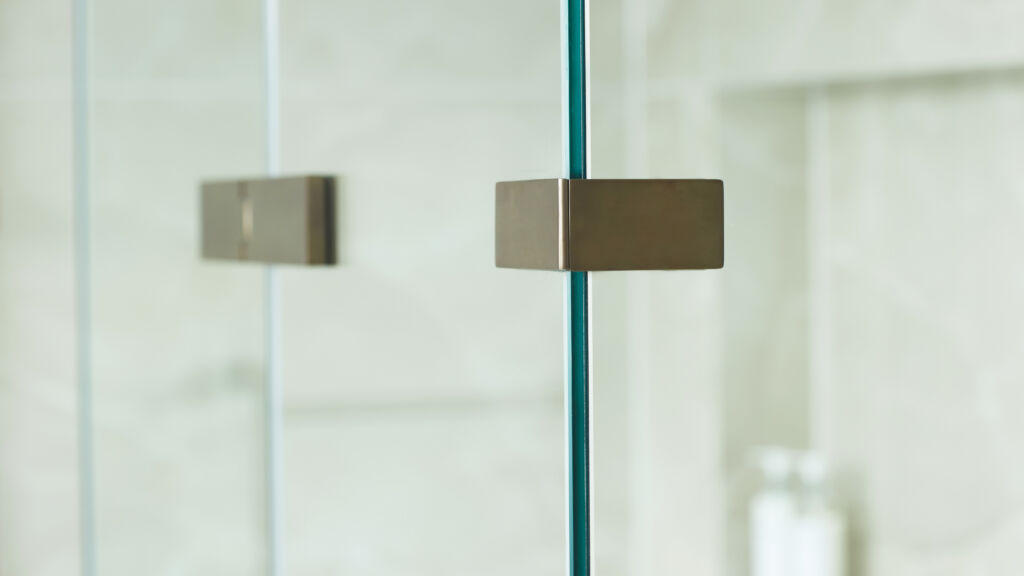

Corner Wrap Bracket
The Corner Wrap Bracket is used to secure the corner join of two fixed panels. It gives a really strong join in situations where the standard corner bracket cannot be used.
Width (both ways): 87mm. Height: 44mm.
